400T/H Fully Automatic Biochemistry Analyzer MF480(RUBY)

Vertical automatic biochemistry analyzer

·Compact design:1065*745*1120mm(W*D*H)

·Independent mixer probe

·Less utility of reagents : 20-300 μl/test

·Efficiency speed:400 tests/hour

·User friendly: smart and easy operating software

·High accuracy: minimal operating/random errors



System functions

·Analysis methods:end-point,kinetic,two-point

·Double-reagent,double-wavelength,multi-standard etc

·Open to different brand reagents



Sample/Reagents

·Sample volume:2-30ul,0.1μl step

·Sampleposition: 120 pcs

·Reagent position:90 pcs (With refrigerated function)

·Reagent volume:20-300 μl,1μl step



Reaction system

·Reaction cuvette:90 resuable cuvettes

·Reaction volume: 150-350μl

·Reaction time:10 minutes

·Reactiontemperature: 37±0.1℃,automatic heating.

Optical system

·Light source: halogen-tungsten lamp

·Wavelength:340-700nm,8 wavelengths, (4 positions are optional)

·Absorbance range: 0-4.00Abs

·Resolution: 0.0001Abs



Calibration and Quality control individually

·Calibration: linear/nonlinear,one point,multi-point(Max 8 points)

·Quality control: QC plot automatically depict the   function condition,show the QC results,.



Working condition

·Power supply:AC110/220V,±10%, 50/60Hz,1000VA

·Humidity:≤90%



Operation computer system

·Windows7,Windows 8 or above, windows XP



Input and output

·Input:USB interface/computer

·Output: Multi-format printout

Technical Specifications:

Sample/Reagent tray

·120 sample position

·90 reagent position

·Reagent refrigerated function

Reaction tray

·90  reusable cuvettes

·Automatic blank testing for cuvettes

·Colorimetry systemof the pattern of light splitting behind cuvettes

·Dismountable, easily replacement

·Reaction temperature 37℃,constant temperature function

Sample/Reagent Probe

·Automatic liquid level detecting

·Collision protection function

·Probe internal/external washing

·Probe deepth automatic adjustment

Auto cleaning system

·Automatically 6-step wash

·2 times repeat wash

·Hi-tech washing station to ensure acurate results

Auto mixer, independently

·Automatically mix reagent and sample in cuvettes

·Ensure full reaction

·Automated wash itself

·Avoid cross-contamination

Perfect standard diagram

·Automaticshow reaction curve

·QC result diagram recorder,print available

Intelligent software

·Automatic washing cuvette when start test&finish test

·Automatic detect sample& reagent volume

·Reaction temperature detecting when startup

·Alarm: automatic alarm of no reagent,no sample,wrong run,out of linearity range etc

·Automatic re-test sample in next order if no reagent

Real-time and Dynamic display running status

·Real-time show the running status

·Real-time show the status of reagent tray,sample tray,cuvettes

·Rea-time update the reagent residual volume

Related Information

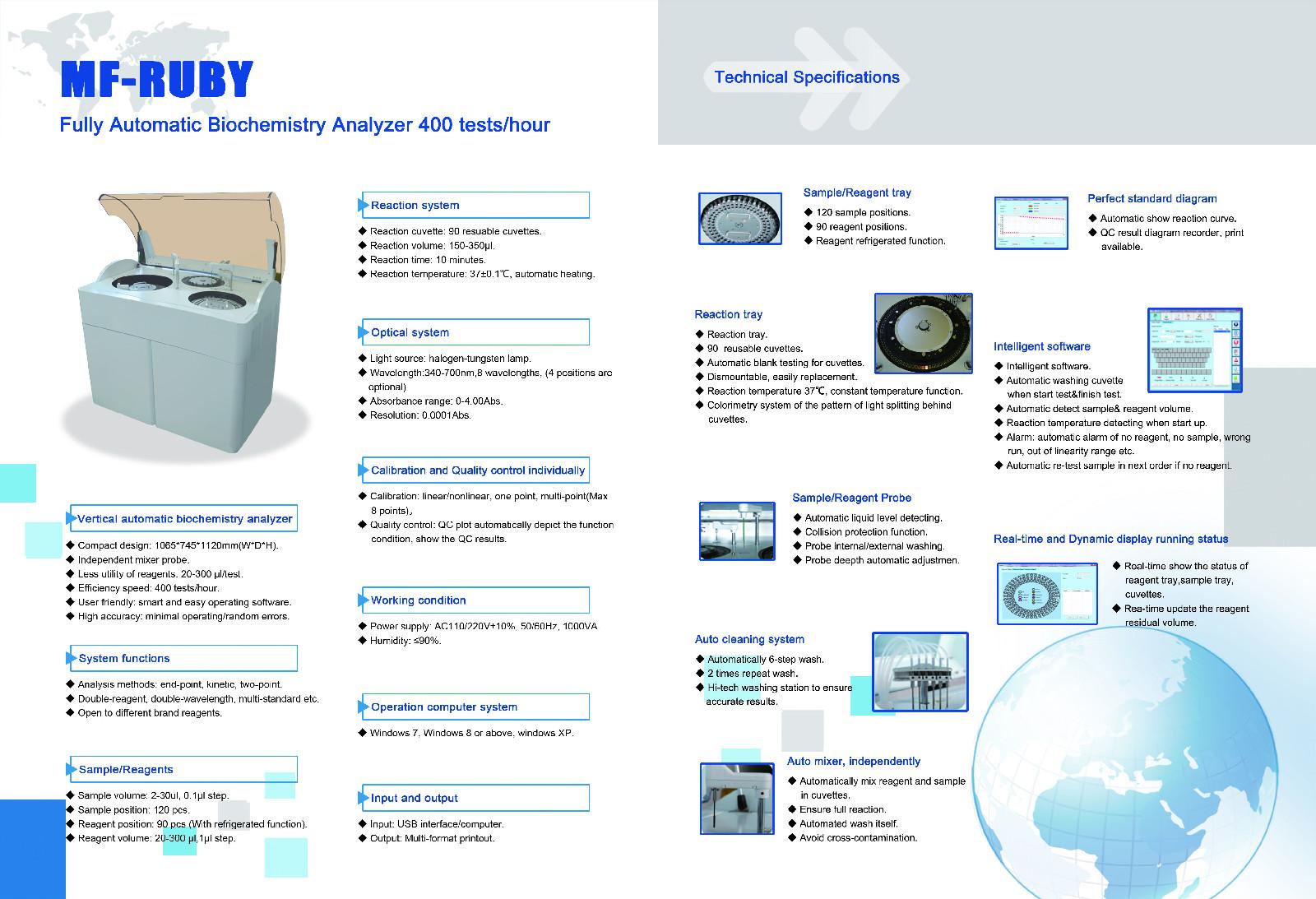

400T Fully Automatic Biochemistry Analyzer MF480(RUBY).jpg
