It is suitable for blood banks, hospitals,
sanitation and anti-epidemic stations, electronic industries, university
laborites, military industries, pelagic fishery companies.

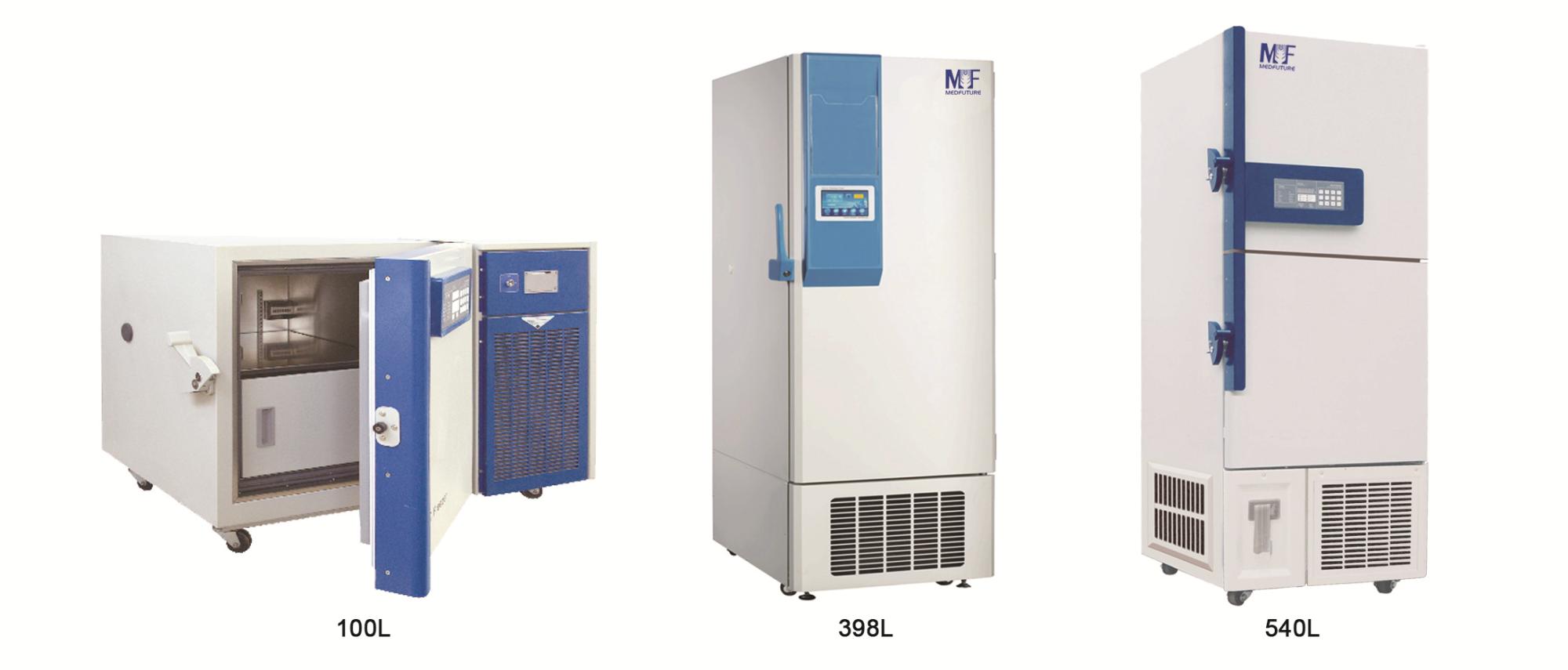

Model
BDF-86V100
BDF-86V540
BDF-86V398
External Size (W*D*H)mm
1000*720*793
840*918*1984
785*1064*19859
Internal Size (W*D*H)mm
450*450*500
Upper:695*600*588
Down:695*600*588
440*696*1266
Capacity
100L
540L
398L
Type
Vertical
Temp.Range
-10- -86℃
-40- -86℃
Temp. Accuracy
0.1 ℃
Control System
Microprocessor control& Large Screen LED Display
Microprocessor control& LCD touch screen
Audio and visual alarm
High and low temperature, System failure, Door ajar, Sensor
failure, Low voltage, Filter blocking; Power failure（only for BDF-86V100 and
BDF-86V540）
Refrigeration Type
Direct refrigeration
Refrigerant
Mixture refrigerant
Compressor
1set
2sets
1set
Condenser&Evaporator
Made of copper
Construction
Structure
Unibody design, two-time foaming technology,
100~155mm foaming insulation, with VIP+
Internal
Material
SS304
External Material
Cold-rolled steel coated with anti-bacteria powder
Door
Lockable door
Caster
4 casters
Chamber with inner door
2
4
4
Temp.Test Port
1,φ40mm
1,φ40mm
2,φ40mm
Consumption
800w
1800w
1000w
Power Supply
AC220V±10%，50/60HZ
Standard Accessory
Temperature printer, record 7 days data,
72 hours battery backup for printer and controller display
